Arduino LED rope programming

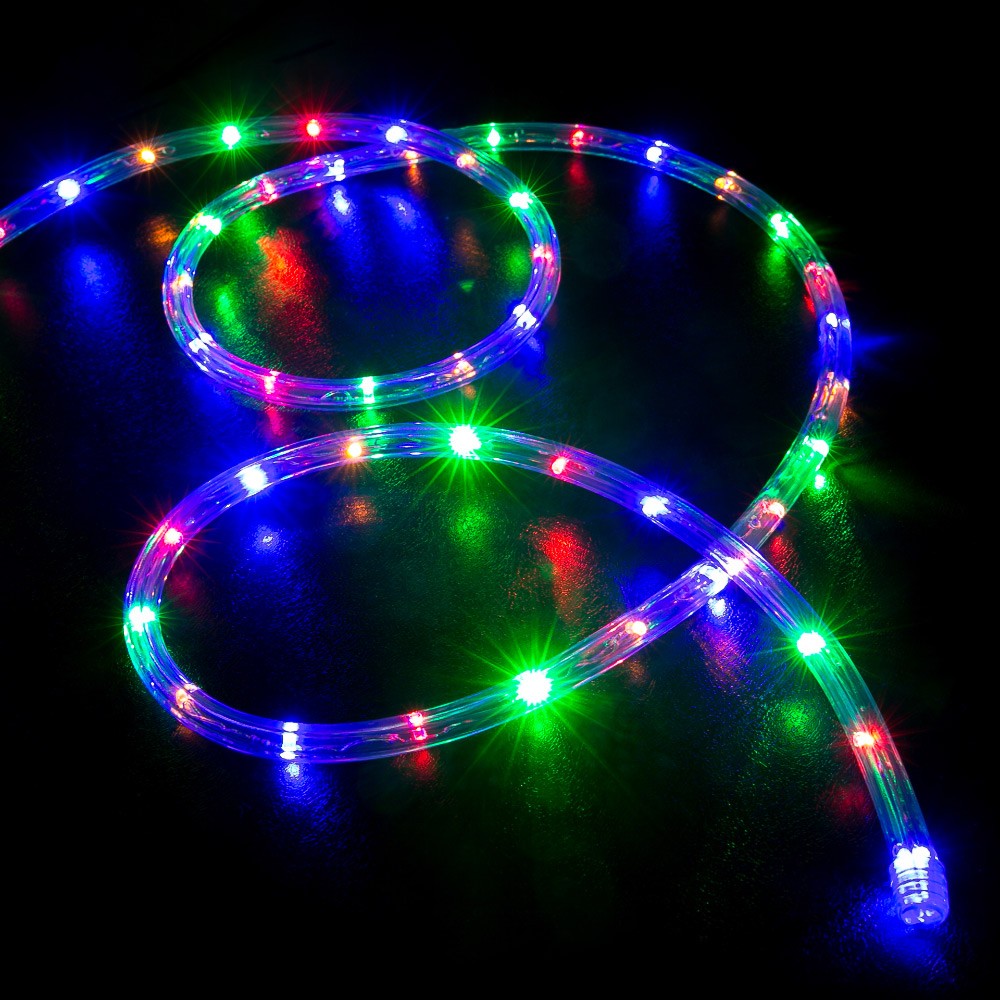

This class will be focased on using a string of LED's on a flexible PCB. The LED "Rope" features 60 individual LED components, each of which is individually addressable and programmable brightness level for Red, Green and Blue color. This style LED strip uses +5 Volts, GND, Clock and Data pins. This allows a simple SPI like serial interface, which is time independent, using the APA102-C interface chip. The Adafruit equivelent product is called DotStar, and we use the same libraries as this for our interface.
- Youtube demonstration of LED rope.
- Please install this Adafruit_DotStar-master.zip library in your Arduino IDE.
- Adafruit LED rope strandtest.ino example program
- Adafruit Dotstar LED rope product description
- Learn how to program Adafruit Dotstar LED rope.
- Adafruit Dotstar LED cheat sheet pdf.
- Pololu APA102-C LED rope product page.
- Pololu APA102-C LED rope Github library.
- Open APA102.pdf data sheet in a new window.
- Another data sheet => apa-102c-super-led-specifications-2014-en.pdf
- Open WS2801.pdf data sheet, SPI like, seperate clock and data.
- Open WS2811.pdf data sheet, 800 KHz one pin combined clock/data.
- Color test LED rope LED_Strip.ino example program
- Converging Worms => LED rope LED_Strip_two.ino example program
